规格
连续扭矩 0.75 to 15 Nm 加速扭矩
1.5 to 30 Nm 减速比 5:1 to 80:1 额定输入转速 3000 rpm 最大输入速度 6000 rpm 尺寸(长 x 高 x 宽) 45x57x42 mm to 110x132x71 mm 用于定心直径 18 to 40 mm
下载
更多信息

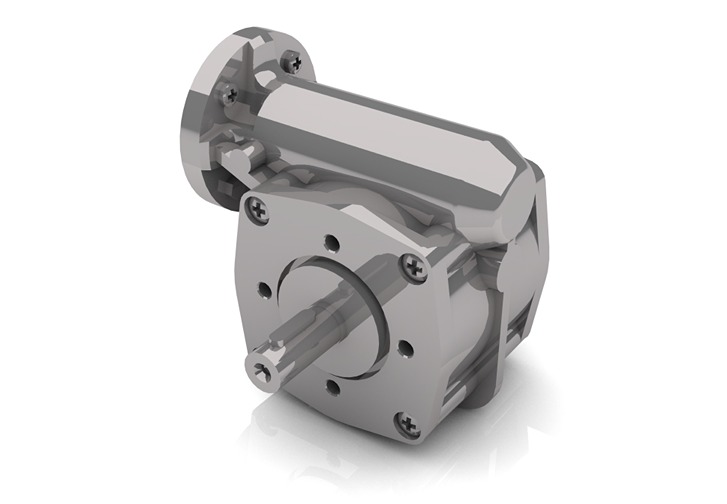

SG系列蜗轮蜗杆减速箱具有结构紧凑和传动比范围广的特点。低传动比可实现高效率,而高传动比则具备自锁优势。该系列采用直角输出设计,非常适合轴向空间受限的应用场景。此外,其运行极其安静,适用于对噪音敏感的领域,如自动门系统或医疗技术设备。
