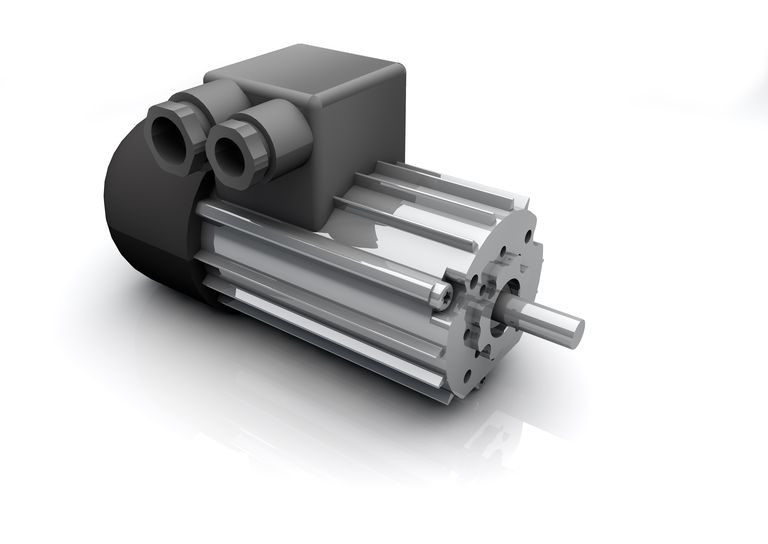

AC Motors
Keep Your Operation Running Smoothly
For applications demanding reliable power without the hassle of constant upkeep, look no further than Dunker’s AC motors. These robust motors are built to last, minimizing downtime and maximizing productivity
For applications demanding reliable power without the hassle of constant upkeep, look no further than Dunker’s AC motors. These robust motors are built to last, minimizing downtime and maximizing productivity
- Built for Endurance: Our AC motors are designed for long-lasting performance, requiring minimal maintenance to keep them running strong.
- Configuration Options: Choose from single-phase (KD series) or three-phase (DR series) winding solutions to perfectly match your application's power requirements
- Simplified Operation: AC motors offer a straightforward design for easy integration and operation, keeping your system running smoothly.
Configure suitable gearboxes and download 3D models
Product Finder
Any questions on this product? Please feel free to contact us!
CONTACT US
Specifications
| Applied Voltage | 230/400 | V |
|---|---|---|
| Nominal power | 5-87 | W |
| Nominal torque | 0,037-0,315 | Nm |
| Nominal speed | 1100-2700 | rpm |
Big Performance. Small Footprint
Dunkermotoren's KD and DR series AC motors are designed for maximum efficiency in a space-saving design. Here's what sets them apart:
Dunkermotoren's KD and DR series AC motors are designed for maximum efficiency in a space-saving design. Here's what sets them apart:
- Ultra-Slim Design: These motors boast a compact profile, ideal for applications where space is limited.
- Customizable Speed & Torque: Combine them with our modular gear system to achieve any desired rotational speed and generate high torque output, all in a small footprint.
- Integrated Braking Option: Add brakes for precise stopping power when needed
- Temperature Monitoring: Integrate temperature switches to keep your motor operating within optimal ranges.
- Global Compatibility: Operates on both 50Hz and 60Hz mains for worldwide use.
- Voltage Flexibility: We can design motors for phase voltages deviating from the standard 230V.
- High Protection Options: Choose IP ratings exceeding standard requirements for protection in harsh environments.
- Fan-less Options: Select fan-less versions for applications where noise reduction is a priority.
- Customizable Output Shaft: We can tailor the output shaft length and diameter to your specific needs.
-
More InformationThe AC motors are manufactured as standard in two different construction diameters and in various lengths. Thus we offer a wide range of nominal torques (0.75 - 31.5 Ncm) for best torque even on small cross-sections. All AC motors are equipped with integrated fans and capacitors. A multi-grooved stator field with inserted three-phase winding, together with the operating capacitor (KD series), generates the rotating field for optimum efficiency on the ball-bearing rotor, which acts as a short-circuit armature. Both series can be operated at 50 Hz and 60 Hz, the direction of rotation is reversible.
In the modular system, the desired speed can be achieved by using the appropriate gearbox. The diameter of the output shaft is variable in length and diameter. Combinations with brakes and the installation of a temperature monitor are also possible. Variants for phase voltages other than 230 V or other IP protection classes can be produced. Please do not hesitate to contact us for special designs.
Downloads Series

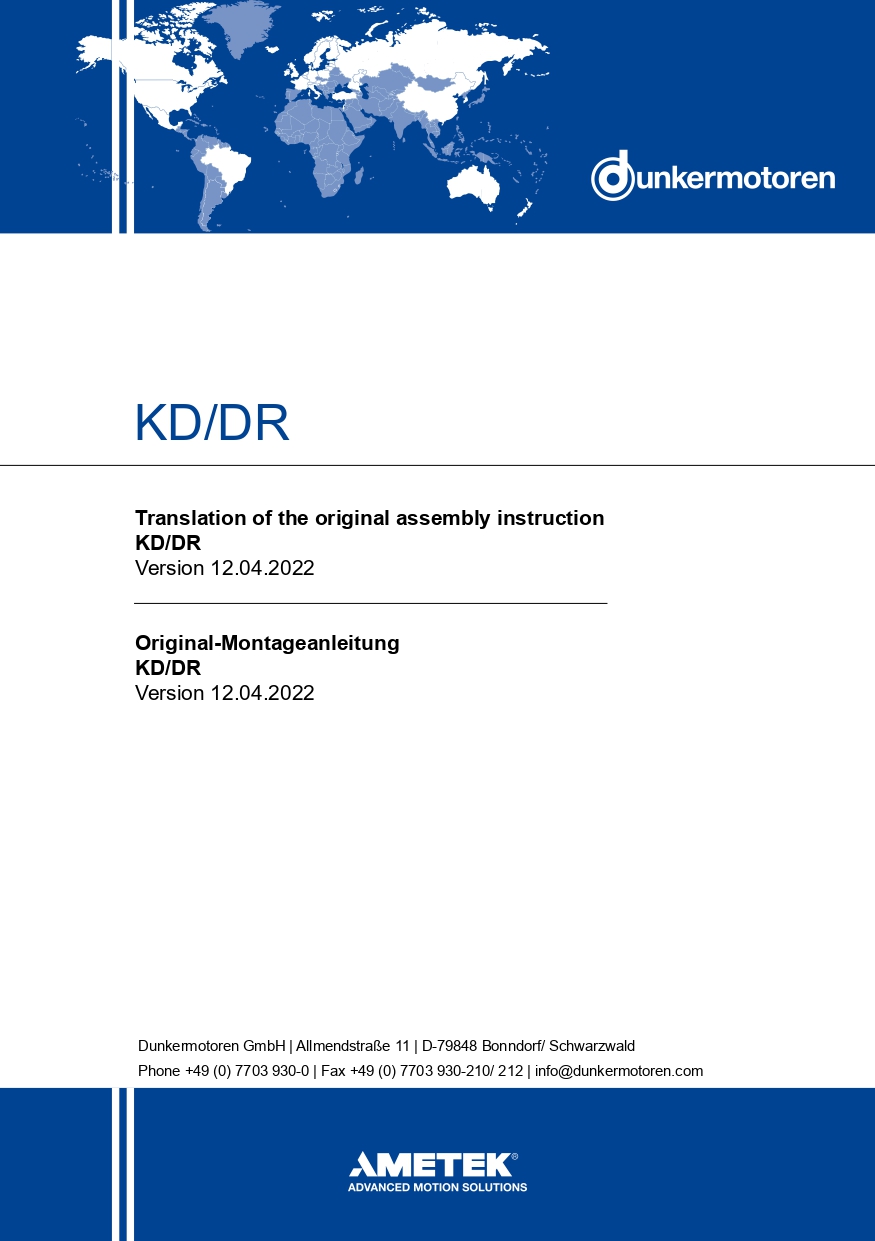

Operating Manuals
-
Product Datasheets
-
FAQ's
-
Are Dunkermotoren also available online?Yes, you can also order Dunkermotoren online. Please visit our Dunkershop
-
Can I configure a Dunkermotor by myself?Yes, you can configure it yourself with our Online Configurator
