Planetary Gearboxes | PLG

Dunker´s planetary gearboxes (PLG) offer high continuous torque, compact design, low weight, and an excellent gear efficiency of typically 97%. The output shaft is coaxial (inline) with the motor shaft, meaning there is no offset. The various designs make it possible to achieve the properties suitable for the application. In addition, they can be adapted to customer requirements, such as the interface. They are maintenance-free and can be easily combined with our BLDC, DC, and AC motors.

Planetary Geabox/Gearhead from Dunkermotoren

Specifications

Continuous torque	0,25 - 130 Nm
Acceleration Torque	0,35 - 258 Nm
Gear ratio	3:1 - 3189:1
Nominal input speed	3000 - 6000 rpm
Maximum input speed	6000 - 10000 rpm
Outer Diameter	22 - 95 mm
For Centering diameter	10 - 95 mm
Mounting part circle	17 - 115 mm

Downloads

Main Catalogue Dunkermotoren

Gearboxes

More Information

Planetary gearboxes have a high gear efficiency of typically 97%. In terms of power density, they are far superior to other gear types, such as spur gears. The output shaft is concentric, meaning there is no shaft offset from the motor. In combination with motors, they typically do not protrude beyond the motor diameter, allowing the designer to create particularly compact designs. They can be mechanically adapted to the application. Special flanges and shafts are no problem. The helical gears enable high gear ratios of up to 14.5:1 in a single stage. This allows the drives to be built particularly short.

For requirements such as low temperatures, the gearboxes are lubricated with low-temperature grease. For the food and pharmaceutical industries, appropriate lubricants are available.

Product Data Sheets

Our planetary gearboxes are available in various configurations:

EB (EconomyBase): Durable and smooth-running.

EP (EconomyPlus): High reduction ratios in the first stage. Durable and smooth-running.

HT (HighTorque): High power density and exceptionally robust. Protection class up to IP 65 possible.

SL (ServoLine): Extremely long service life, compact design, and efficiency in combination with BLDC motors of the BG motor series.

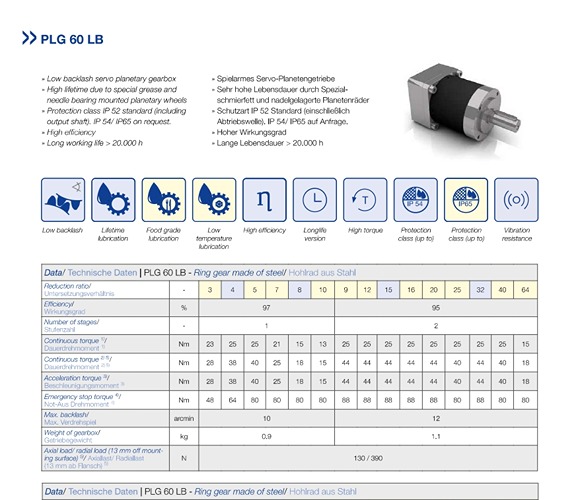

LB (LowBacklash): Low gearbox backlash and long service life.

LN (LowNoise): Exceptionally quiet – ideal for medical technology.
