Looking for high ratios, high torque, and compact right-angle drive solutions?

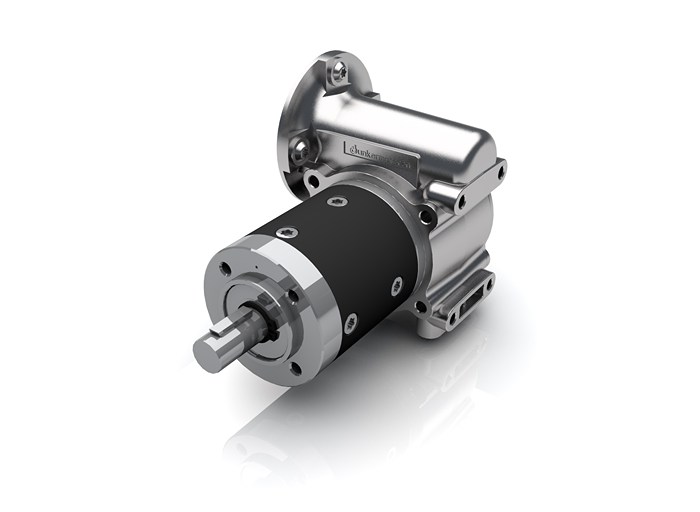

Our combination gearboxes provide high reduction ratios, strong torque transmission, and precise motion in compact right-angle drive layouts. The WG series combines worm and planetary gearbox stages to achieve reduction ranges that conventional single-stage solutions cannot provide in the same installation space.
Your Benefits:
- High reduction ratio: WG series ratios up to 320.
- Compact right-angle design: Ideal for limited installation space
- High output torque: Planetary stages enable strong torque transmission.
- Precise motion: Suitable for positioning, lifting, and adjustment axes
- Versatile: Available in various designs and protection classes.
- Proven technology: Robust gearbox stages for reliable performance.
Our combination gearboxes are ideal for: conveyors, robotics, lifting axes, medical devices, mobile automation, and many more applications!
Any questions on this product? Please feel free to contact us!
CONTACT US
Configure suitable gearboxes and download 3D models
Product Finder
More Information
Combination gearboxes of the WG series are designed for applications that require high reduction ratios, compact right-angle output and reliable torque transmission. The WG series combines a worm gearbox stage with a planetary stage and is suitable when conventional single-stage gearbox concepts reach their limits in terms of reduction range and installation size.
The WG series is available in sizes WG 52, WG 63 and WG 75, with reduction ratios up to 320:1, high output torques and smooth, low-noise operation.
Depending on the version, the combination gearboxes support operating modes S1 and S8, input speeds up to 3000 rpm, lifetime lubrication, vibration resistance and protection classes up to IP65
The WG series is available in sizes WG 52, WG 63 and WG 75, with reduction ratios up to 320:1, high output torques and smooth, low-noise operation.
Depending on the version, the combination gearboxes support operating modes S1 and S8, input speeds up to 3000 rpm, lifetime lubrication, vibration resistance and protection classes up to IP65
